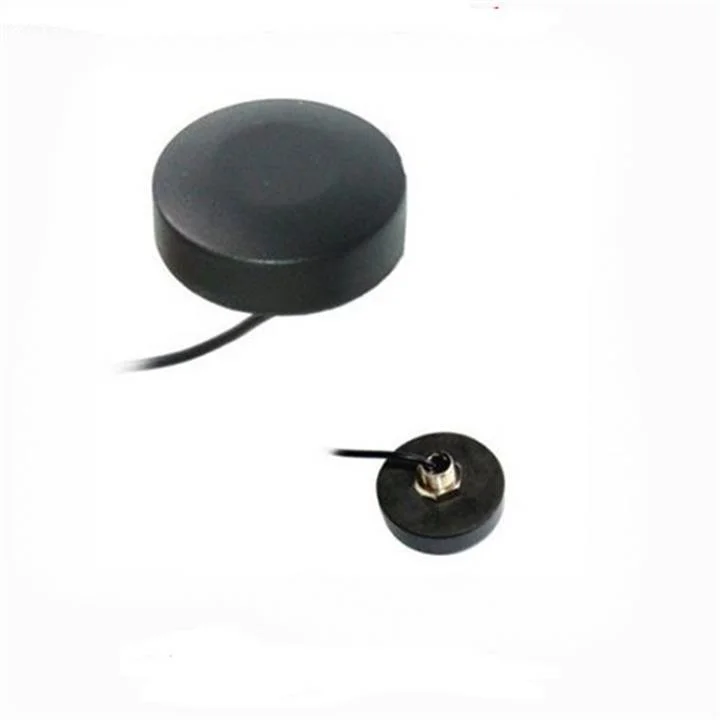

The function of the GPS&BDS receiving antenna is to transform the electromagnetic wave energy of the radio signal
from the satellite into a power source that can be picked up by the receiver electronics. Our GNSS antenna is composed
of ceramic ntenna body and active amplifier. It is packaged in a plastic shell, which is waterproof and moisture-proof.
|1||Range of Receiving Frequency (MHz)||1575.42&1561.098±3MHz|
|2||Center Frequency (MHz)|
(with 30mmSpuareGND plane)
|3||Band Width (MHz)(Return Loss≤-10dB)||≥10|
|4||V.S.W.R (in Center Frequency)||≤2.0|
|5||Gain (Zenith) (dBi typ)|
(with 70mmSquare GND plane)
|6||Axial Ratio (with 70mm Square GND plan)||3.0dB|
|9||Frequency Temperature Coefficient (ppm/ºC)||0±10|
|10||LAN Gain||26±3 dB|
|11||In Center Frequency||≤2.0|
|18||Connector||SMA or other|
|24||Optional cable length||1M,2M,3M,5M or customized|
Product Advantages and Characteristics
1.Murata acoustic meter filter, effective filtering noise
2.Infineon low noise LNA, output signal to noise ratio
3.High gain, low standing wave ratio, good reception
4.Imported ceramic body
5.Waterproof IP67 / IP68
1.IATF16949 quality management system standard
2.Certification: FCC CE ROHS2.0
3.Semi-automatic production ensures product consistency
1. Inspection method (if the customer inspection is strict with the company, the OQC shall be based on the customer's
acceptance standard) GB2828 inspection according to standard sampling table, normal inspection, one sampling, II
Fatal/serious defect: AC=0 minor defect: AQLAC=1.0
Our company's inspection standard for full inspection, shipping standards for zero defects.
2. The above inspection standards / methods are different from customer standards, customer standards shall prevail.
3. Products shipped abroad must conform to the relevant national standards before shipment.
