Why Choose Focus RFID?
1. Factory direct- Fast delivery 7-12 days.-Service and support 7*24 hours.
2. Quality is our Culture & Time is gold. Our task is save your time and money.
3. Reliable and honest, we are your partner for the long term.

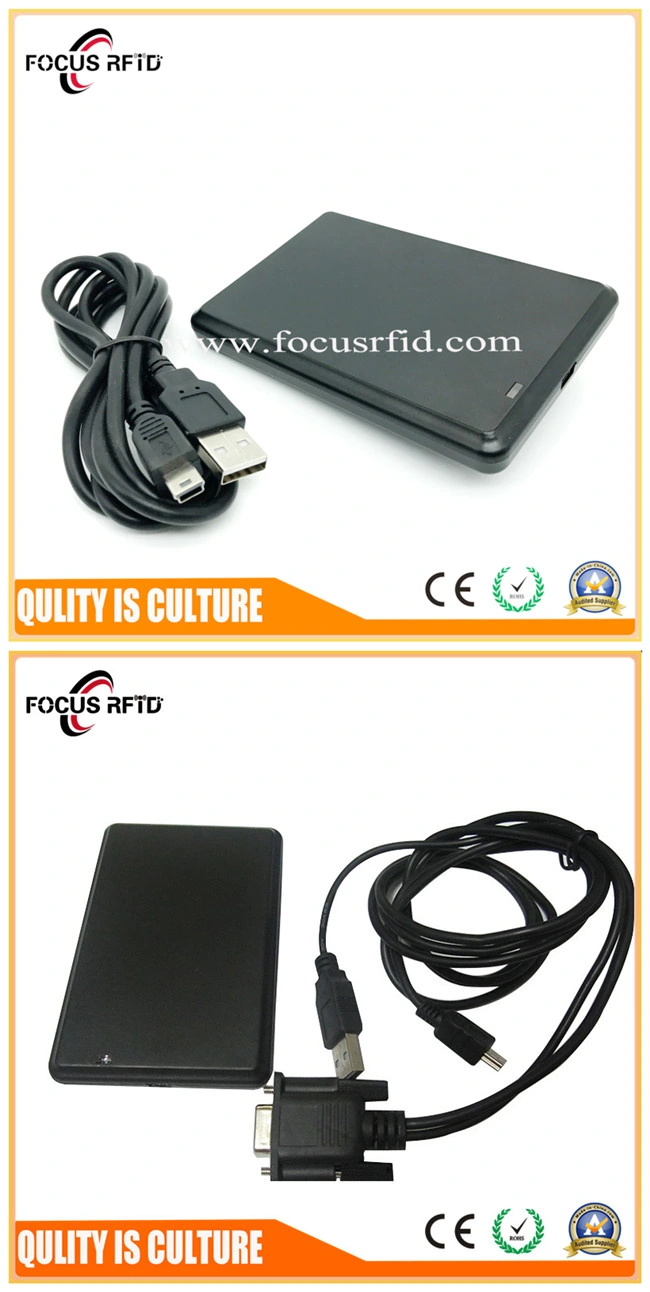

General Descriptions 13.56Mhz USB/RS232 Reader and Writer
ST-H320 series is the 13.56 MHz Reader and Writer, comply with ISO14443A/B, ISO15693 protocol. It is smart reader, good quality and competitive price
Technical parameters
Application
Access control, attendance, conference attendance, medical insurance, hotels, highways, petrol stations, parking, and public transportation, such as toll collection system.
FAQs
How to assure the quality?
In Stock or 7 days
How to send Payment?
We accept LC/TT/Paypal/Western Union
What is the shipment way?
According to the weight of shipment, we will suggest you the proper way DHL/TNN/UPS/FEDEX/By Air /By Ocean (sea), which help you to save time and money.
Value added Service in custom clearance
We can support you to get CO, Form A/E, SASO, CI, PL or any other required document from your custom. Kindly inform us before delivery if need.
1. Factory direct- Fast delivery 7-12 days.-Service and support 7*24 hours.
2. Quality is our Culture & Time is gold. Our task is save your time and money.
3. Reliable and honest, we are your partner for the long term.
General Descriptions 13.56Mhz USB/RS232 Reader and Writer
ST-H320 series is the 13.56 MHz Reader and Writer, comply with ISO14443A/B, ISO15693 protocol. It is smart reader, good quality and competitive price
| Model | Standard | Interface | Color |
| ST-H321 | IS014443A | U(USB)/R(RS232) | B(black)/W(white) |
| ST-H322 | IS014443A/B | U(USB)/R(RS232) | B(black)/W(white) |
| ST-H323 | ISO15693 | U(USB)/R(RS232) | B(black)/W(white) |
| ST-H324 | ISO/IEC14443A/B,ISO15693 | U(USB)/R(RS232) | B(black)/W(white) |
Technical parameters
| Name | 13.56Mhz Reader& write |
| Dimension | 104x68x10mm |
| Standard | ISO 14443A/B,ISO15693 |
| Support | Mifare S70/S50; Mifare UltraLight;I-code2 |
| Frequency | 13.56MHz |
| Speed | 106kbit/s |
| Baud Rate | 9600 bit/s |
| Power Supply | +5V DC |
| Consumed Current | < 80Ma |
| Reading Distance | 50--70mm |
| Interface | USB/RS232 |
| Status Indication | 1pcs LED;1pcd buzzer |
| Service Temperature | -10ºC ~ +70ºC |
| Store Temperature | -20ºC ~ +80ºC |
Application
Access control, attendance, conference attendance, medical insurance, hotels, highways, petrol stations, parking, and public transportation, such as toll collection system.
FAQs
How to assure the quality?
- Quality is our culture
- Each Reader will be tested before delivery
- We take cost to replace defect reader within 12 months caused by our reason
In Stock or 7 days
How to send Payment?
We accept LC/TT/Paypal/Western Union
What is the shipment way?
According to the weight of shipment, we will suggest you the proper way DHL/TNN/UPS/FEDEX/By Air /By Ocean (sea), which help you to save time and money.
Value added Service in custom clearance
We can support you to get CO, Form A/E, SASO, CI, PL or any other required document from your custom. Kindly inform us before delivery if need.
